Description

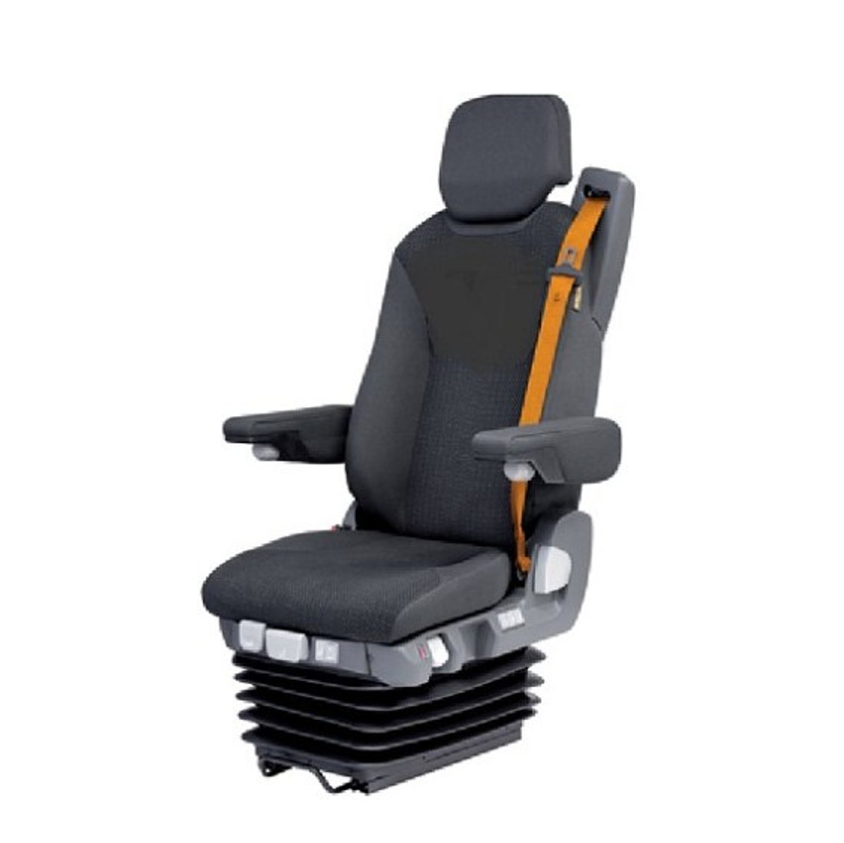

Experience the safety and comfort of the ISRI 6830KM/875.

Advanced design incorporating third generation suspension technology ensures maximum safety and comfort. Efficient operating weight range from 50 to 150kg, integrated 3-point seat belt, adjustable vertical shock absorber, integrated pneumatic system (IPS) dual stage lumbar with lateral support and ergonomically shaped cushion and backrest foams are just some of the standard features in the ISRI 6830KM/875.

Technical Data

• Integrated 3-point seat belt system
• Air suspension with a weight range from 50 to 150kg
• Built in 24 volt compressor or optional 12 volt
• Adjustable vertical shock absorber
• Horizontal isolator
• Integrated pneumatic system (IPS) dual stage air lumbar with lateral support
• Horizontal adjustment of 230mm
• Tilt adjustment
• Cushion length adjustment
• High backrest with integrated head restraint
• Backrest and shoulder adjustment
• Trimmed in breathable charcoal cloth
• Available in left hand and right hand controls

Accessories

• Mounting boxes
• Armrests
• Seat belt buckle sensor
• Seat cushion with contact switch, 24 volt only
• Hardware

Additional Information

• Subject to technical modifications. Updated 05/2009

Standards

• Complies with ISO 6683 - Seat Belts and Seat Belt Anchorages, Performance requirements and tests
• Complies with ISO 7096- Laboratory evaluation of operator seat vibration
• Complies with SAE J2292 - Combination pelvic/upper torso (type 2) operator restraint system for off-road work machines

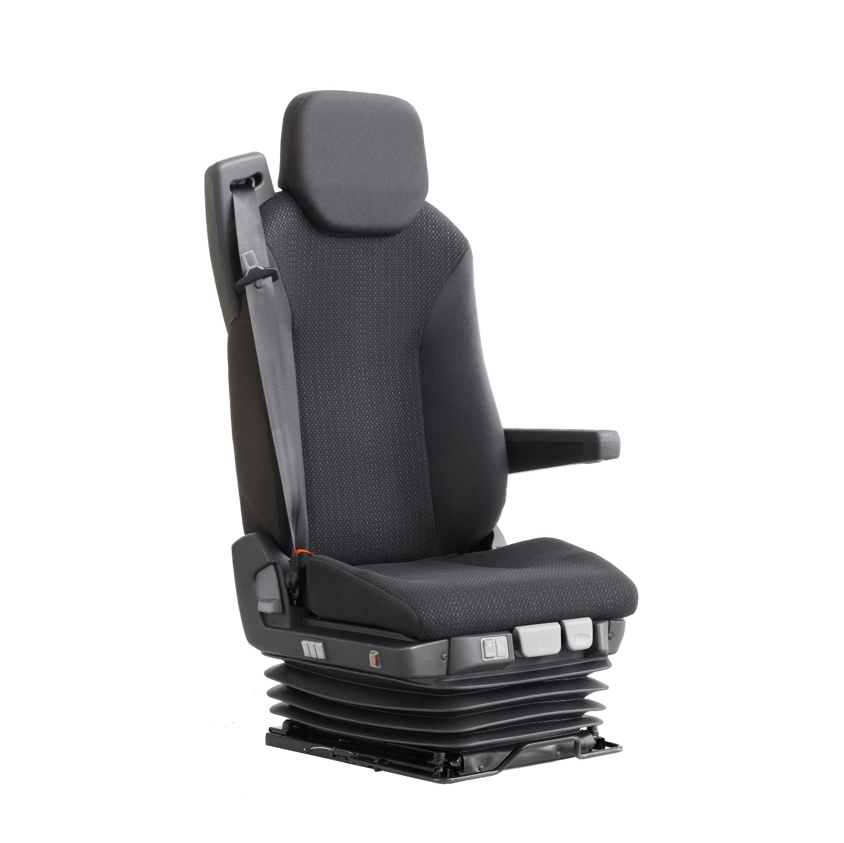

Features

• Weight adjustment (manually)
• Height adjustment
• Tilt adjustment
• Length adjustment
• Backrest adjustment
• Foldable backrest
• Backrest heigt approx. 815 mm
• Belt fixing point (ECE R14)
• Seat cushion adjustment
• Pneumatic lumbar support (LWS)
• Foldable and tilting armrest (left hand)
• 3-point belt system
• Air suspension (12 V)
• Seat heating 12 V

Upholstery Material

ISRI®-Textile
TM02-2238/TU02-2239

Part Number

813376-01

Track Width

320 mm

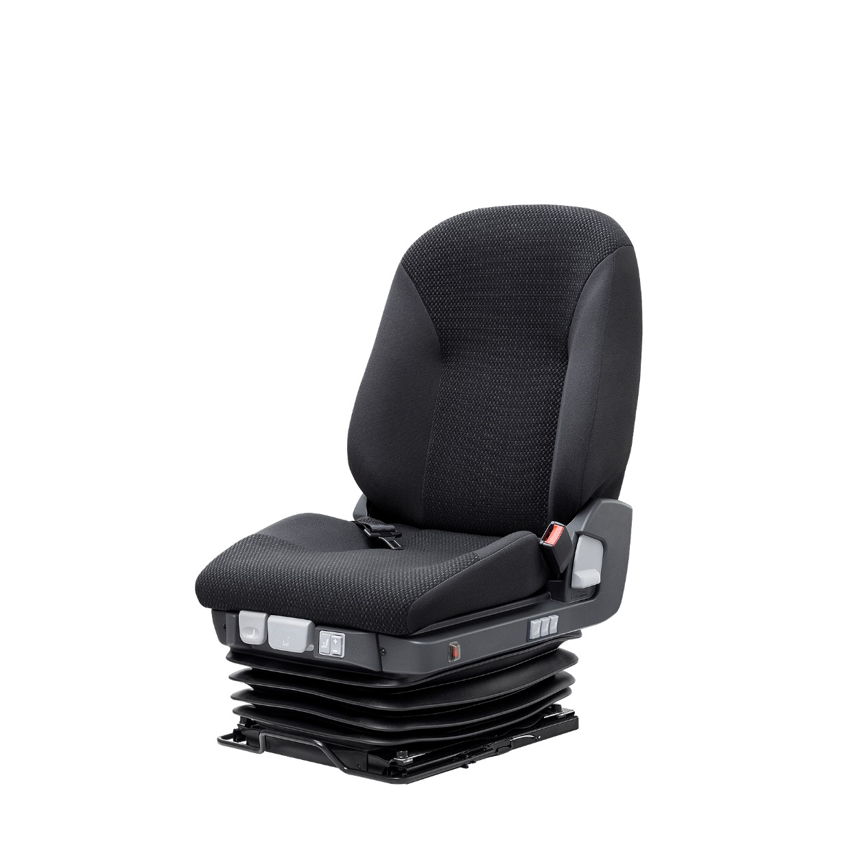

Features

• Weight adjustment (manually)
• Height adjustment
• Tilt adjustment
• Length adjustment
• Backrest adjustment
• Foldable backrest
• Backrest heigt approx. 554 mm
• Belt fixing point (ECE R14)
• Seat cushion adjustment
• Pneumatic lumbar support (LWS)
• Preparations for foldable and tilting armrest
• 2-point belt system
• Air suspension (12 V)
• Seat heating 12 V (optional)

Upholstery Material

ISRI®-Textile
TM02-2238/TU02-2239

Part Number

813181-01

Track Width

320 mm

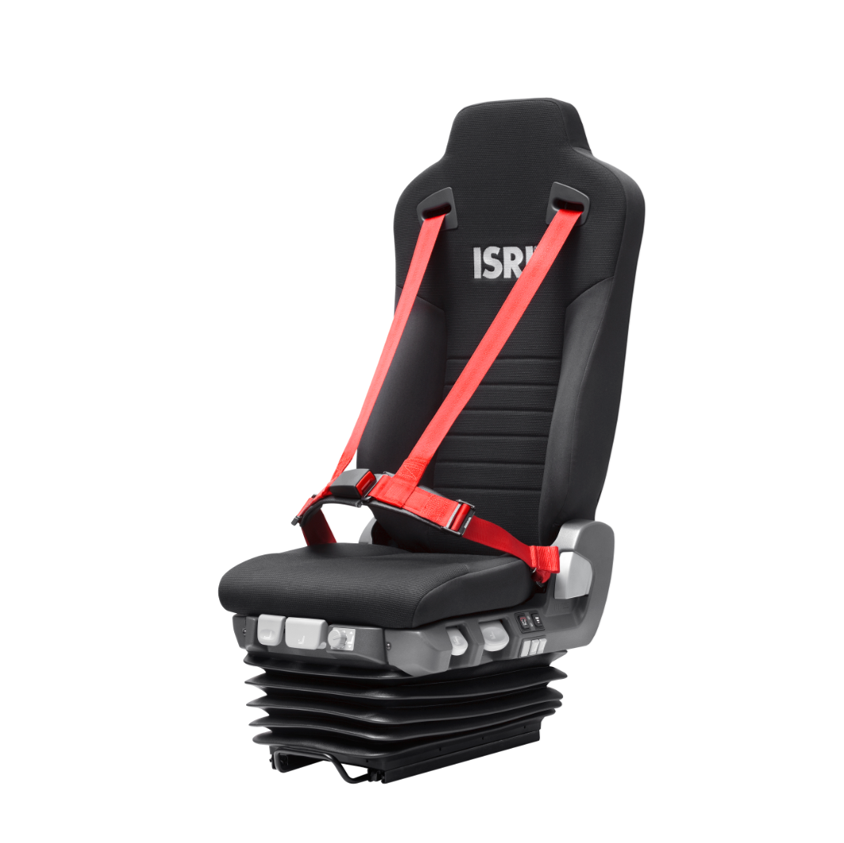

Features

• Integrated compressor 24 V
• Electronic control
• Adjustable damper
• Height adjustment (70 mm, optionally 100 mm) with memory function
• Automatic weight adjustment (infinitely variable up to 150 kg)
• Suspension stroke 80 mm
• Length adjustment
• Horizontal isolator
• Integrated pneumatic system with lumbar support and side bolster support
• Backrest adjustment
• Seat cushion and tilt adjustment
• 4-point belt system (red, optinally black)
• Preparation for foldable and tilting armrest
• Optional Adaption for control panel

Upholstery Material

ISRI®-Textile
TM02-2238/TU02-2239

Part Number

812763-02

Track Width

216 mm

Features

• Operation on the left and in front
• Integrated 3-point belt system with upper belt diverter on the left side
• Integrated compressor 24 V with manual weight/height adjustment
• Adjustable shock absorber
• Backrest adjustment
• Seat inclination adjustment
• Seat cushion adjustment

Options

• Horizontal adjustment
• IPS (pneumatic lumbar support + adjustable side walls)
• Seat heating 24 V
• Comfort armrest, upholstered with textile fabric
• Included headrest, upholstered with textile fabric
• Seat cover ISRI textile anthracite with fine silvery stripes

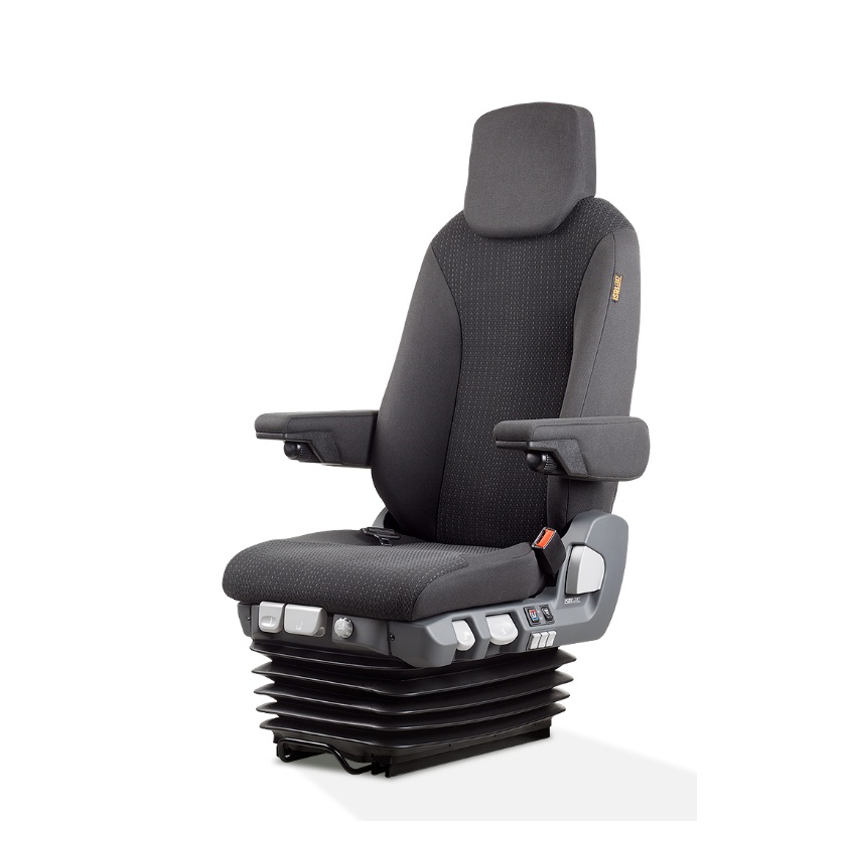

Features

• Integrated compressor
• Continuous height adjustment, up to 150 kg (fully automatic on KA, manual on KM)
• Suspension travel, 80 mm
• Tilt adjustment
• Height adjustment (with memory on KA)
• Two seat belt points in line with current regulations
• Backrest adjustment
• Adjustable vertical shock absorber
• Seat cushion adjustment
• Pneumatic lumbar support
• Hard-wearing, breathable textile cover

Options

• Armrests, folding and tilt-adjustable
• Seat heating, 12/ 24 V with on/ off switch
• Seat climate control
• Automatic lap belt
• Headrests, height and tilt adjustbale
• Horizontal isolator
• Integrated Pnematic System (IPS) with lumbar support and side wings on the backrest
• Vinyl cover
• Swivel
• Adaption for control consoles
